Upgraded Model No :: WP23TM24-02
BG WP23TM24-02 Weatherproof Nexus Storm 13A 1G Switched Socket Time Controlled
NEXUS STORM High quality impact resistant plastic with IP66 protection from water and dust ingress.
- Ergonomic design with see through cover
- Robust high impact UV stable housing

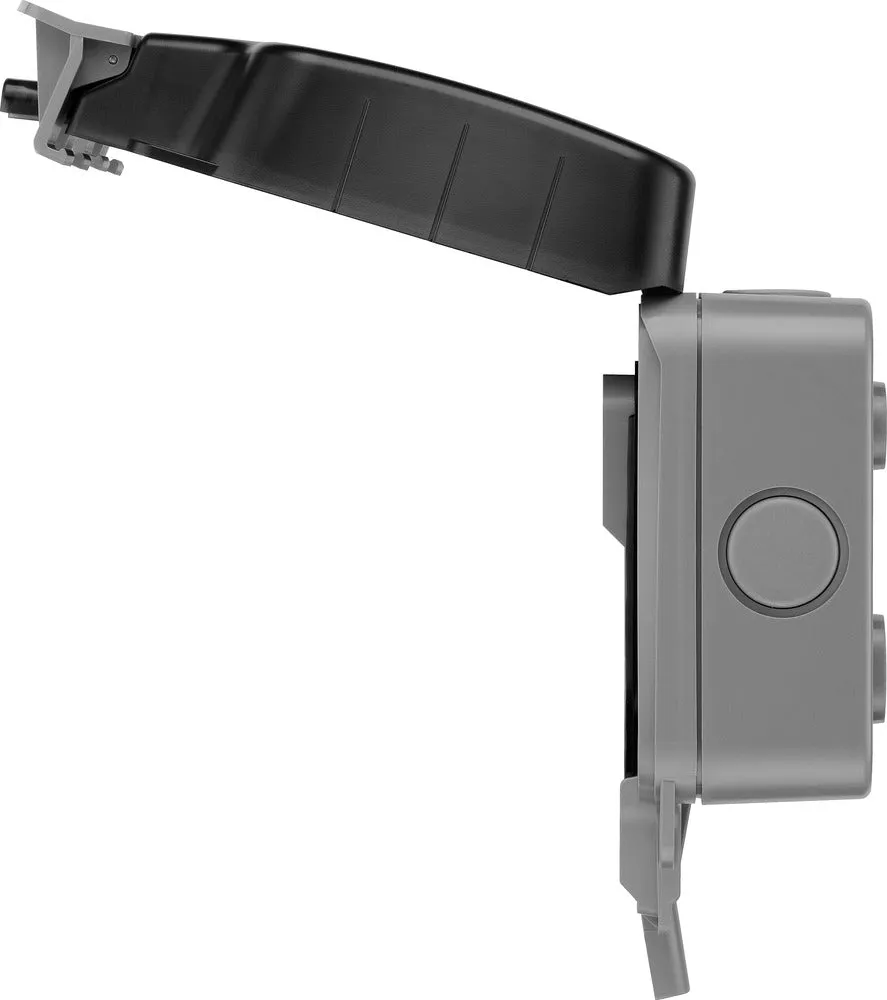

- Stay open socket cover
- Multiple gland entry positions & quick to wire
Weatherproof is available in three ranges
Product Description
BG Nexus Storm, IP66 Weatherproof 13A Single Socket with Mechanical Timer Control
Outdoor sockets are an ideal option for managing outdoor or garden appliances, and can be installed in gardens and patios, as well as in shed’s, outhouses and garages.

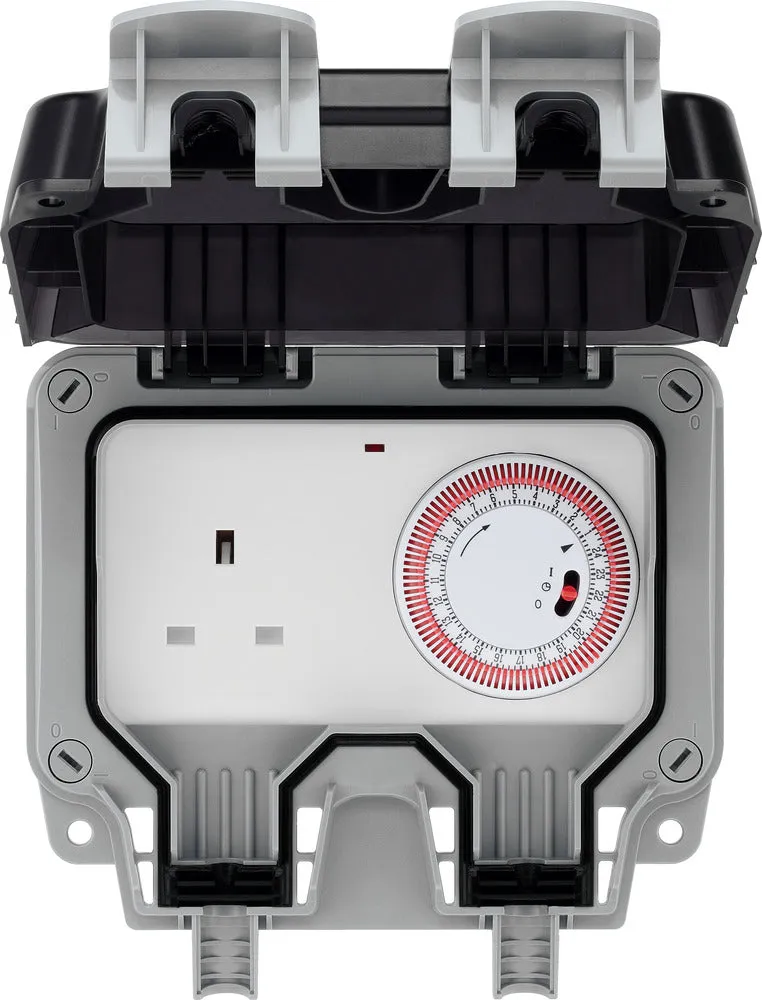

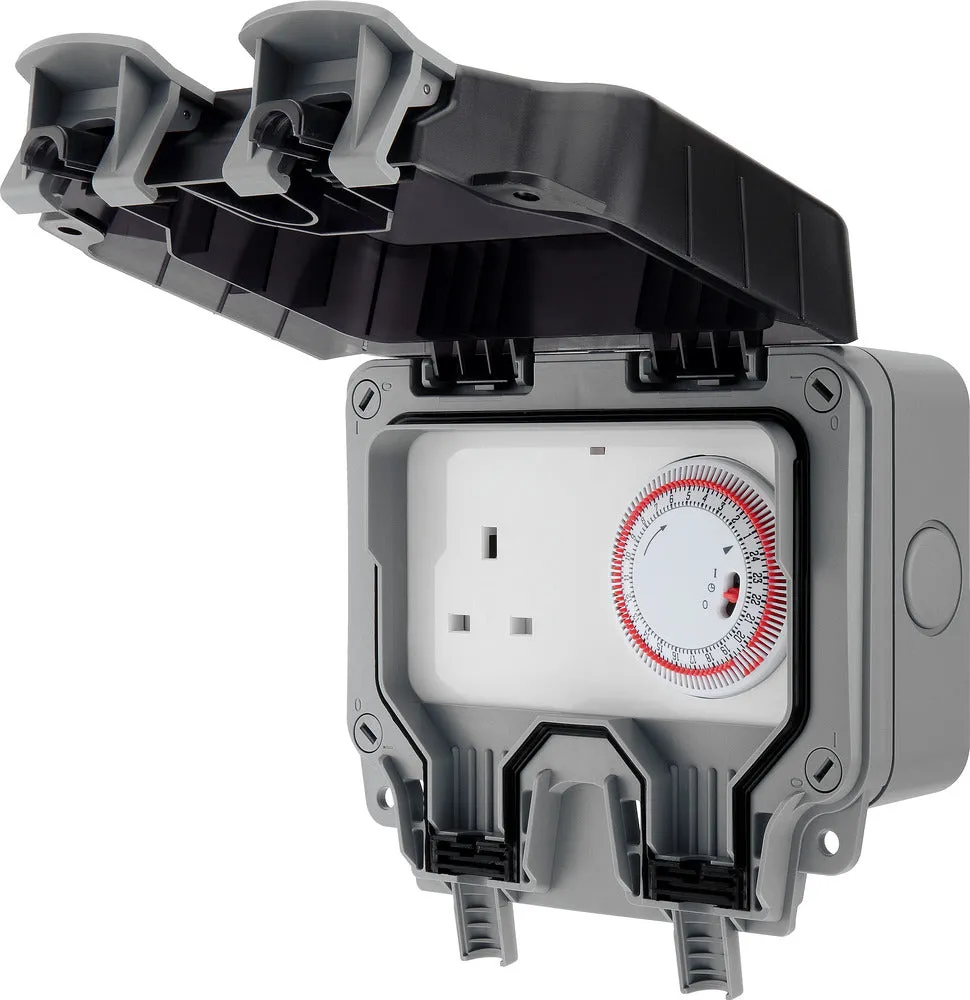

This 13A single unswitched outdoor power socket features a 24 hour timer, ideal for controlling outdoor items such as sprinklers or outdoor lights so they can turn on and off by themselves at appropriate times throughout the day. An override switch with LED indicator allows you to turn items on and off manually without disturbing the regular timer settings.
IP66 rated and designed to protect against water and dust ingress in the most arduous of conditions.

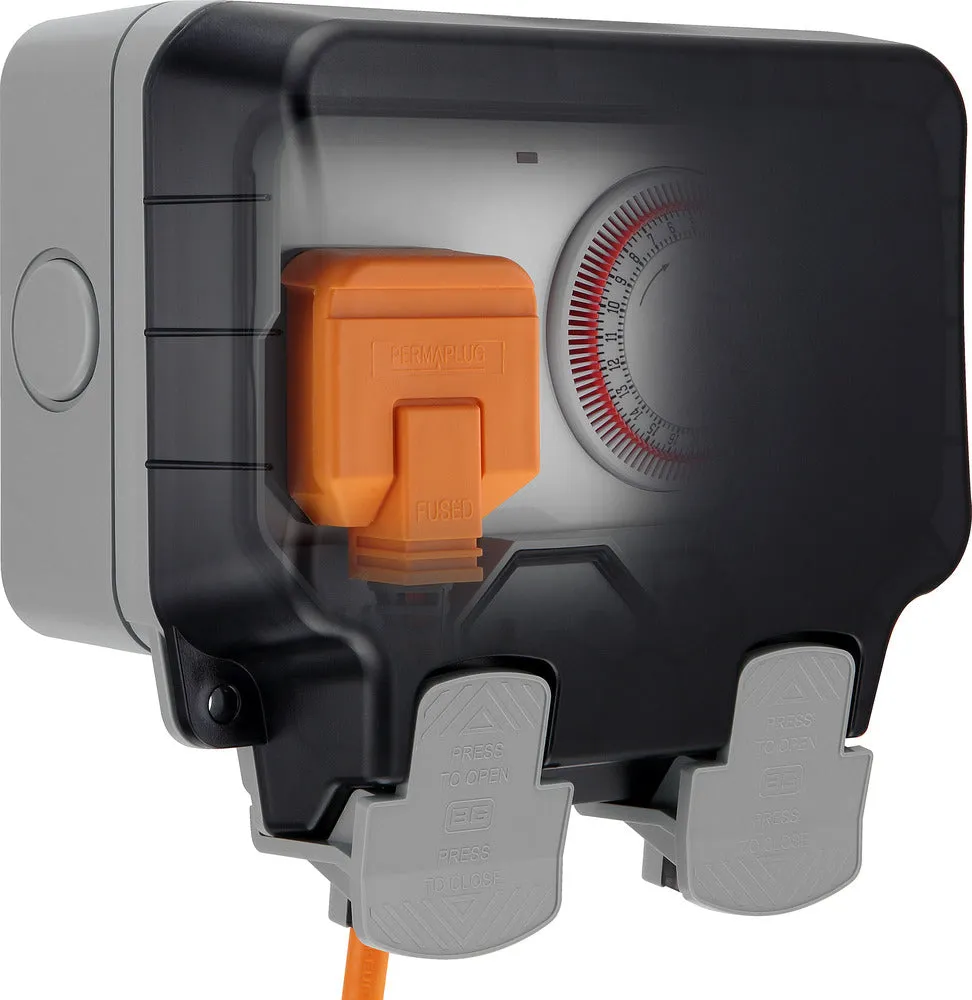

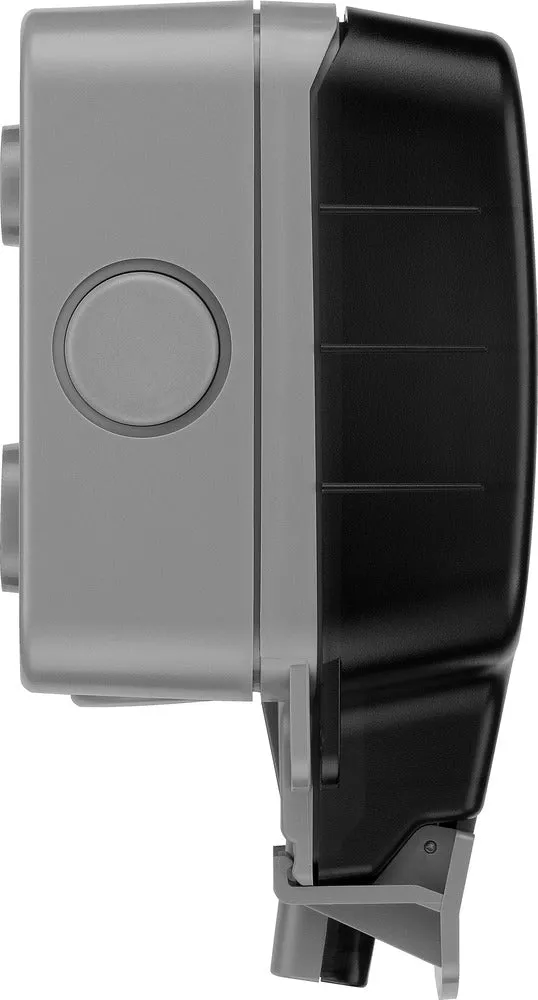

Made with a robust, high impact UV stable housing, multiple gland entry positions , quick wire entry, and an ergonomic design. The LED indicator can also be seen through the hinged see-through cover which acts as an enclosure for the socket.
Features
- Weather and dust protection - IP66 (with cover closed)
- Fast fix - no separate screws, no screw covers, 150o rotation
- 24 hour mechanical timer - 1 segment = 15 minutes, with override switch

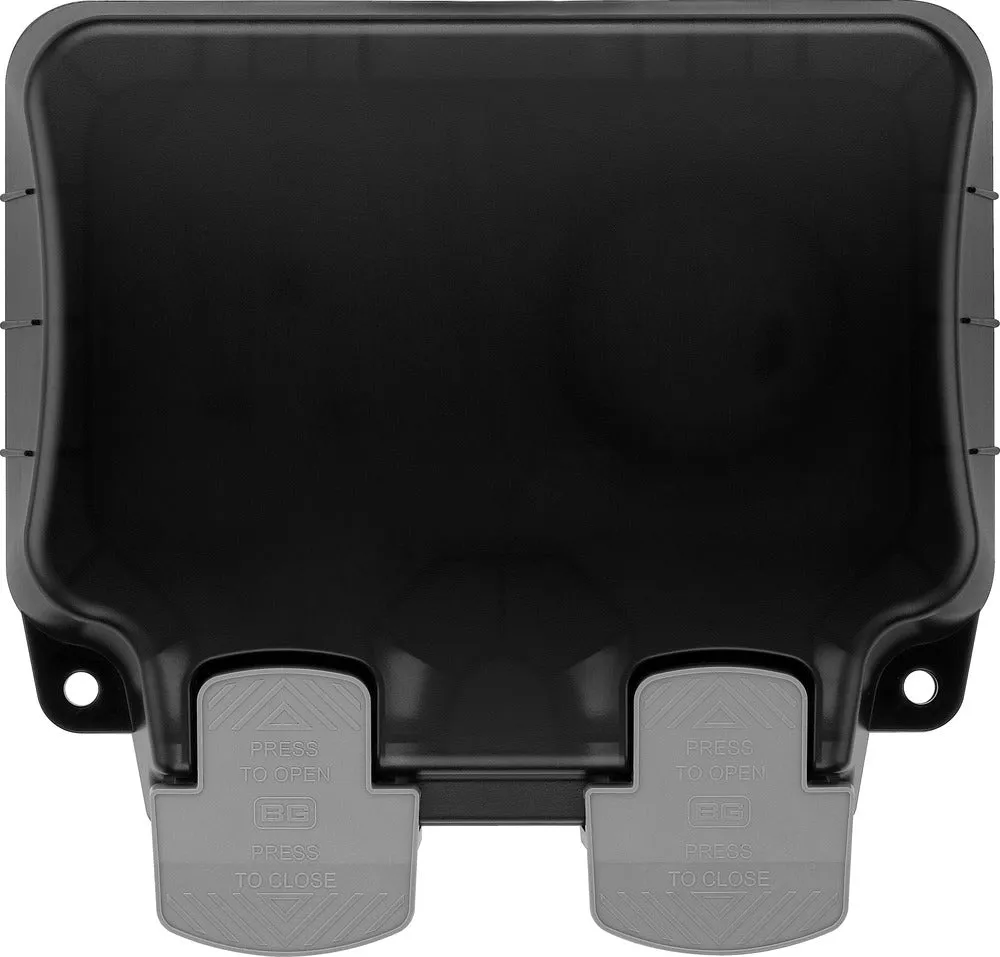

- Large open/closer paddles for easier operation
- Patented cable entry - prevents accidental opening
- LED power indicator mean the power status is visible even when the cover is down

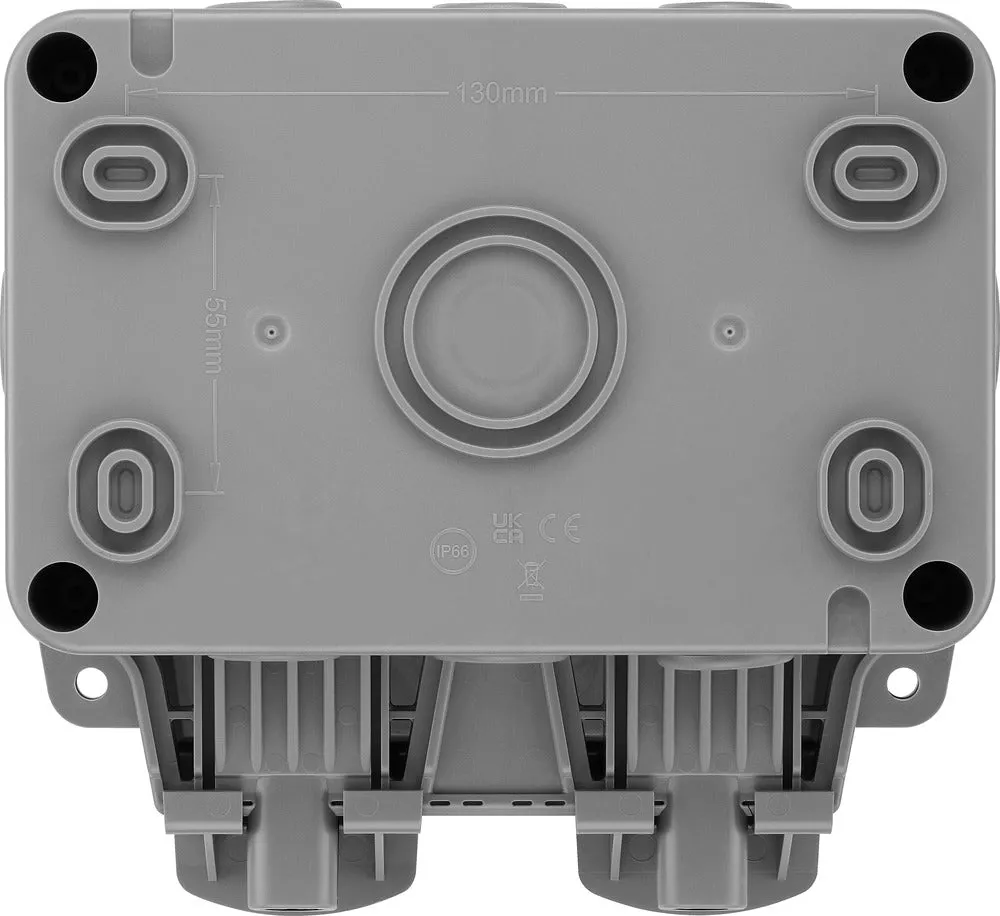

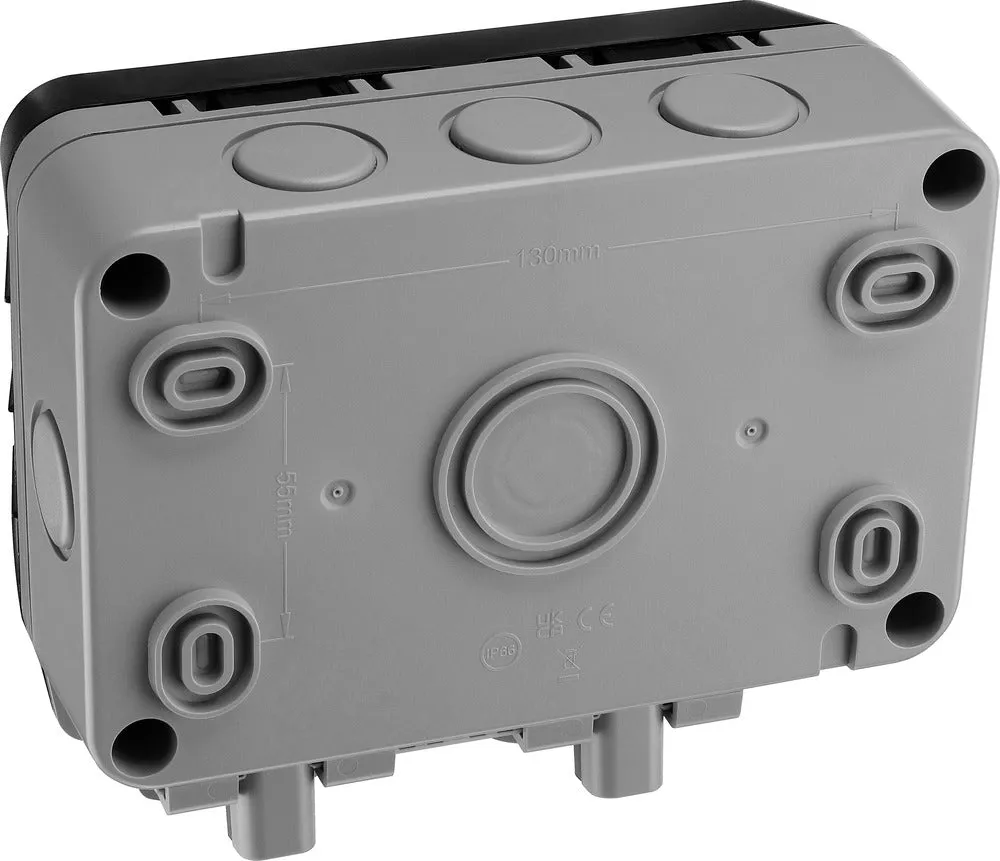

- Multiple knockouts for versatility when installing - 8 x 20mm

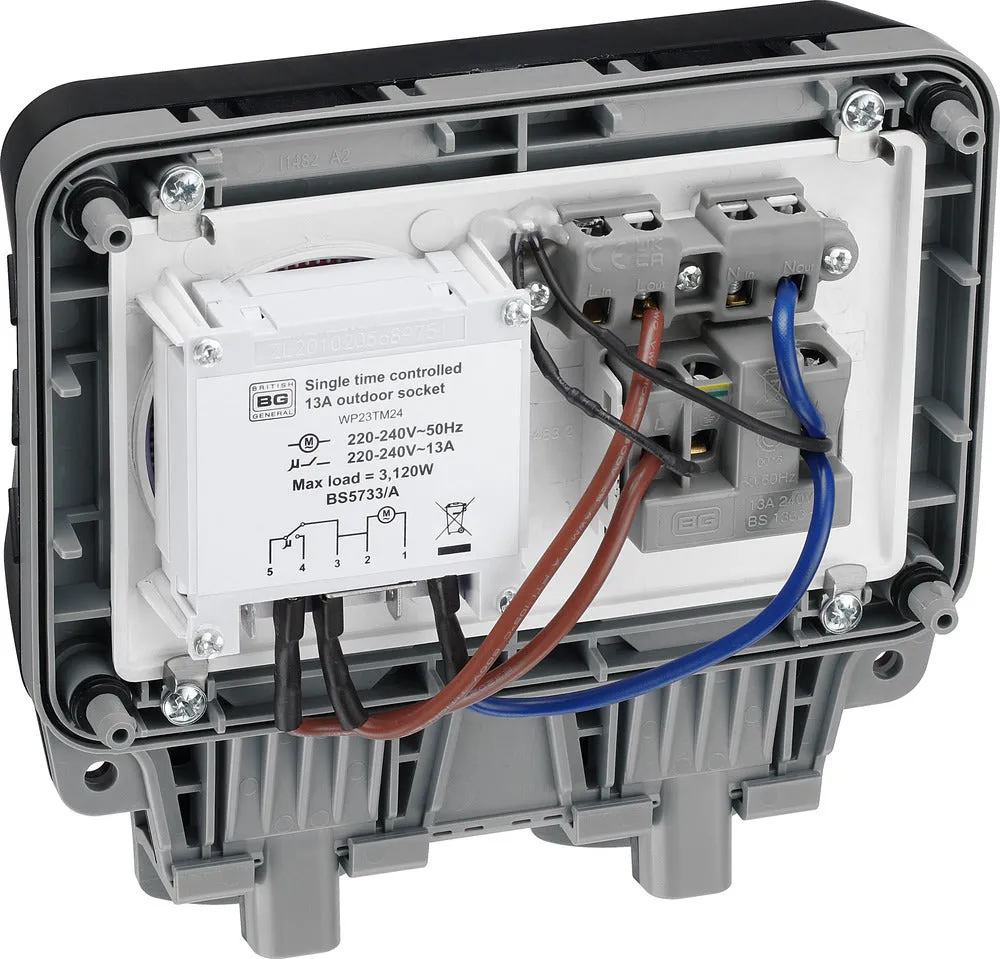

- Angled in-line colour coded terminals with captive screws provide easy access for quick installation
- Twin earth fitted as standard for high integrity circuits

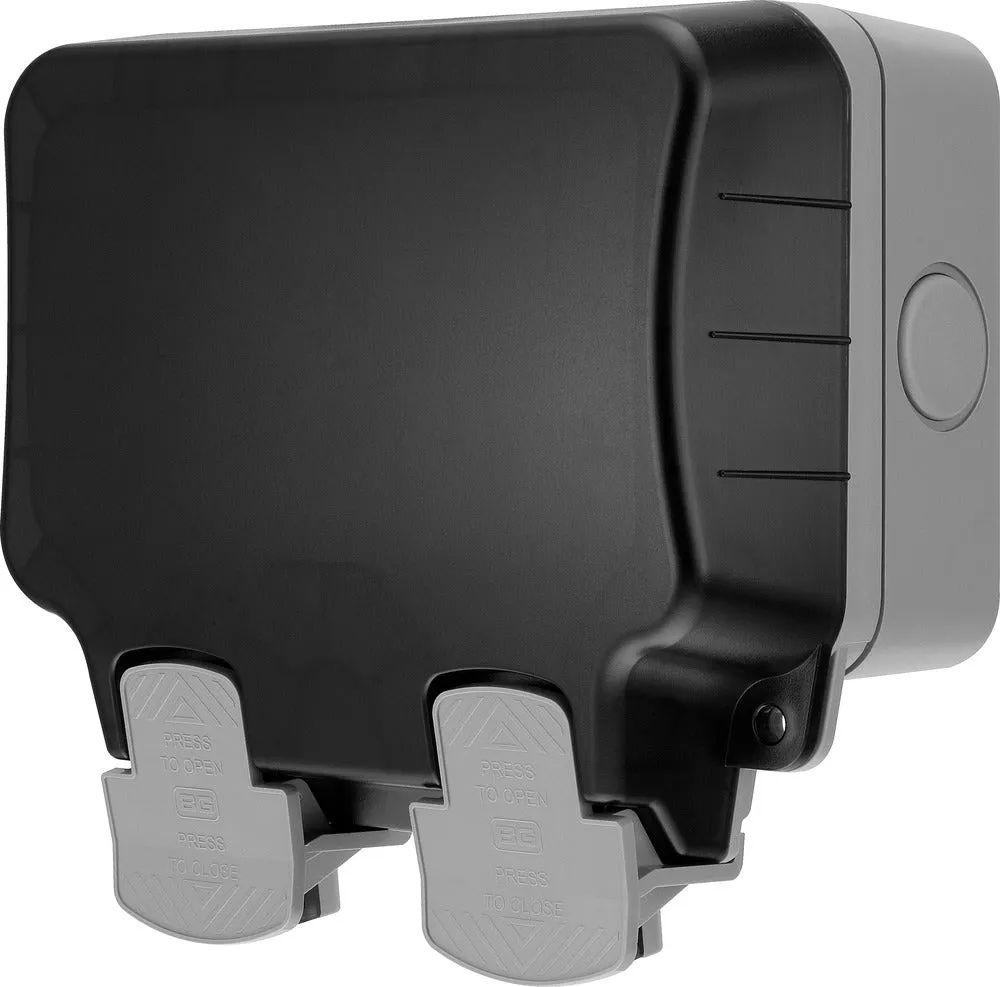

- Lockable hinged cover
