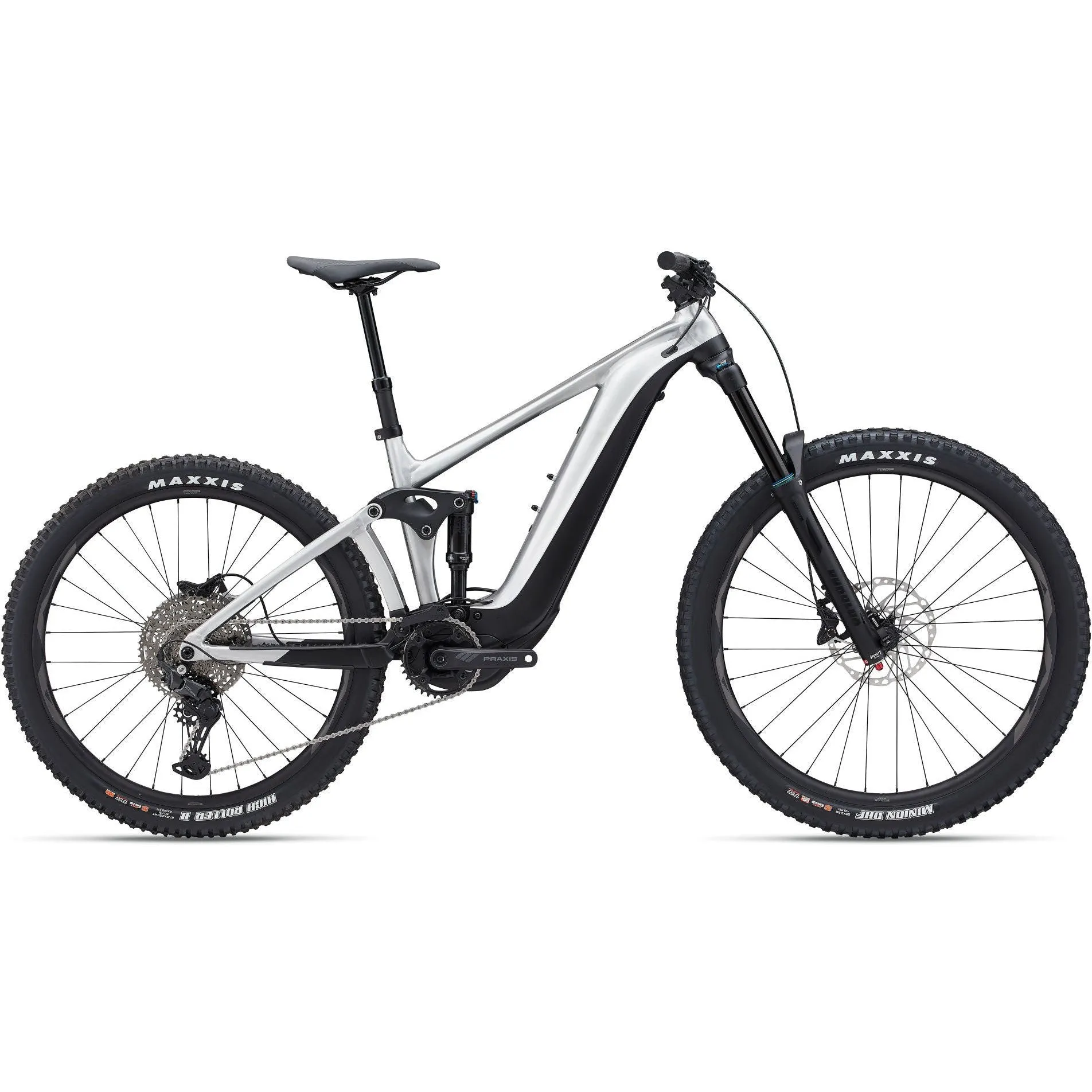

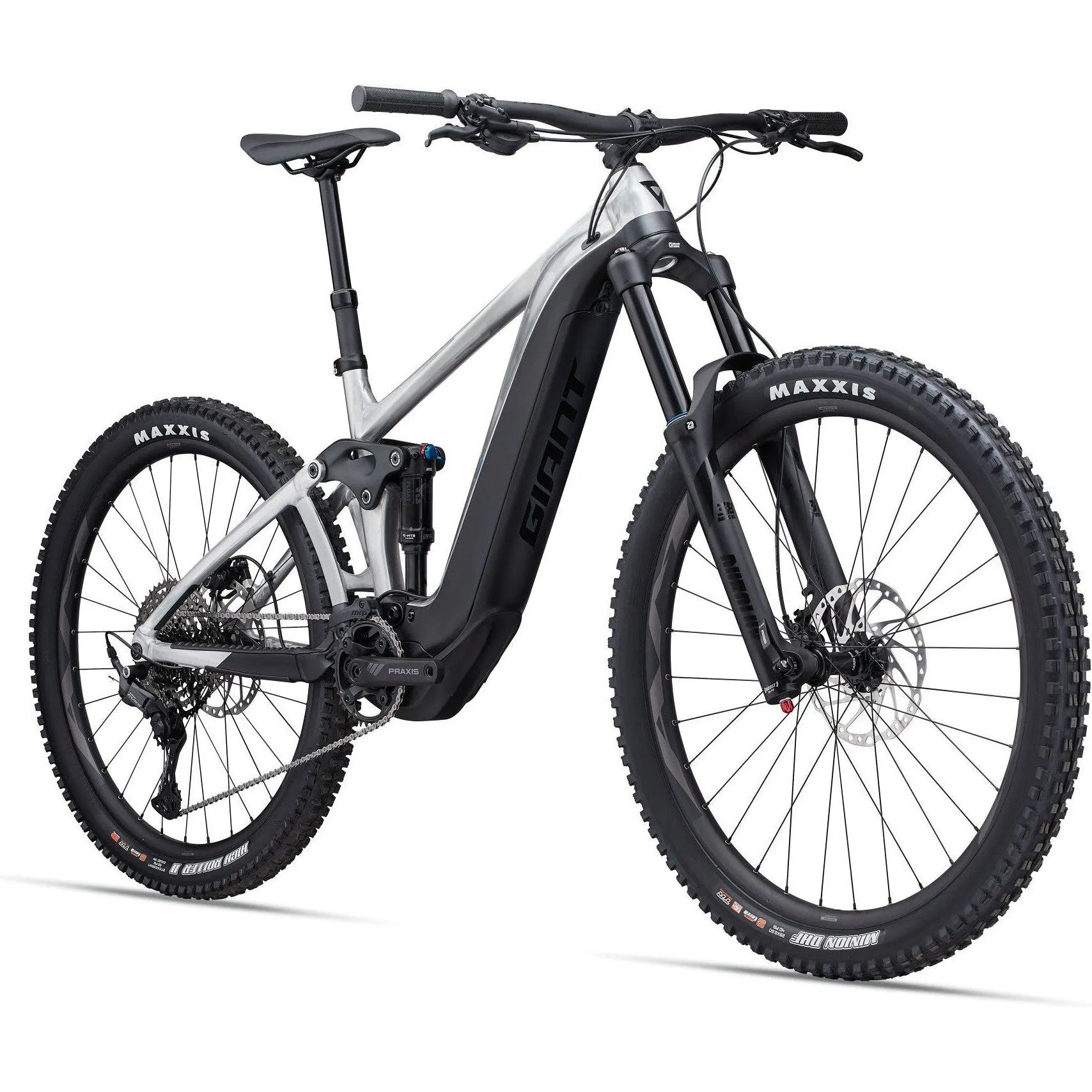

EVERY TRAIL, EVERY STEEP CLIMB, EVERY THRILLING DESCENT. NOTHING IS OUT OF BOUNDS WITH THE REIGN E . TESTED AND DEVELOPED BY GIANT’S E-BIKE ENDURO PROS, THIS PROVEN TRAIL RIPPER GIVES YOU THE POWER TO ENJOY THE BEST PARTS OF THE RIDE AGAIN AND AGAIN.
KEY PERFORMANCE FACTORS
Trail technology

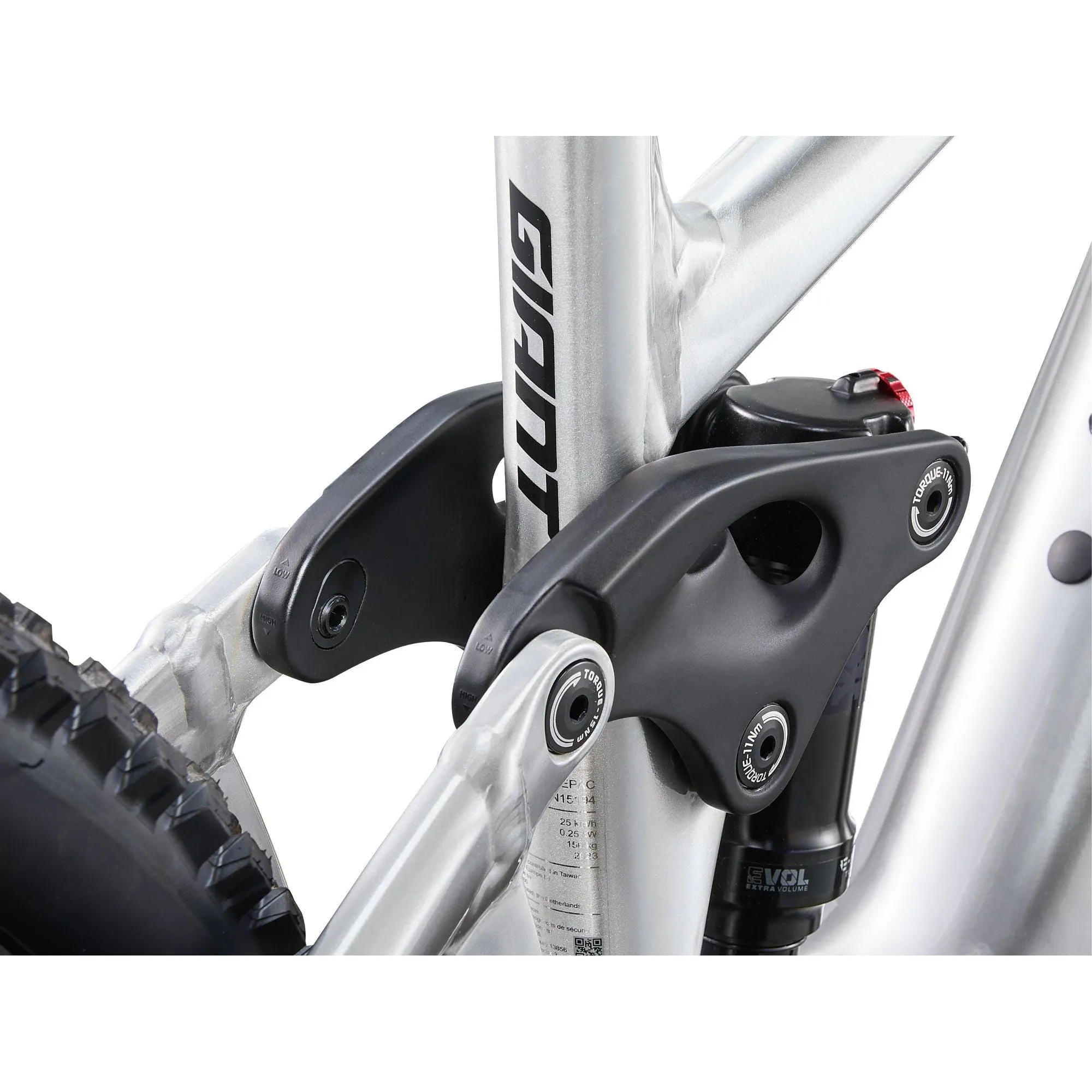

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.

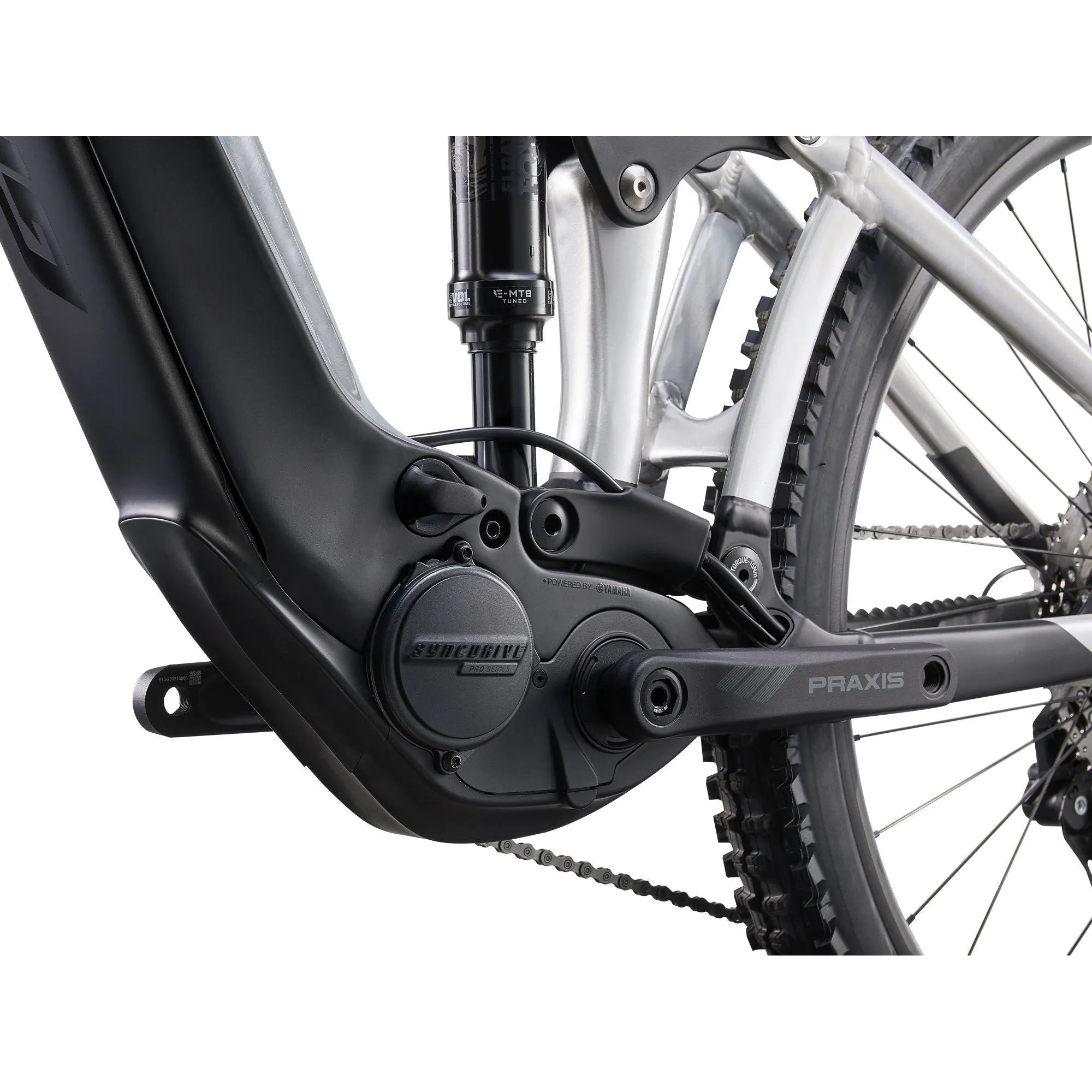

| Motor | SyncDrive Pro 2, 85Nm, powered by Yamaha |
| Battery | EnergyPak Smart 800Wh EnergyPak Plus range extender compatible |
| Charger | EnergyPak 6A smart charger |
| Controller | RideControl Ergo 3, grip integrated |

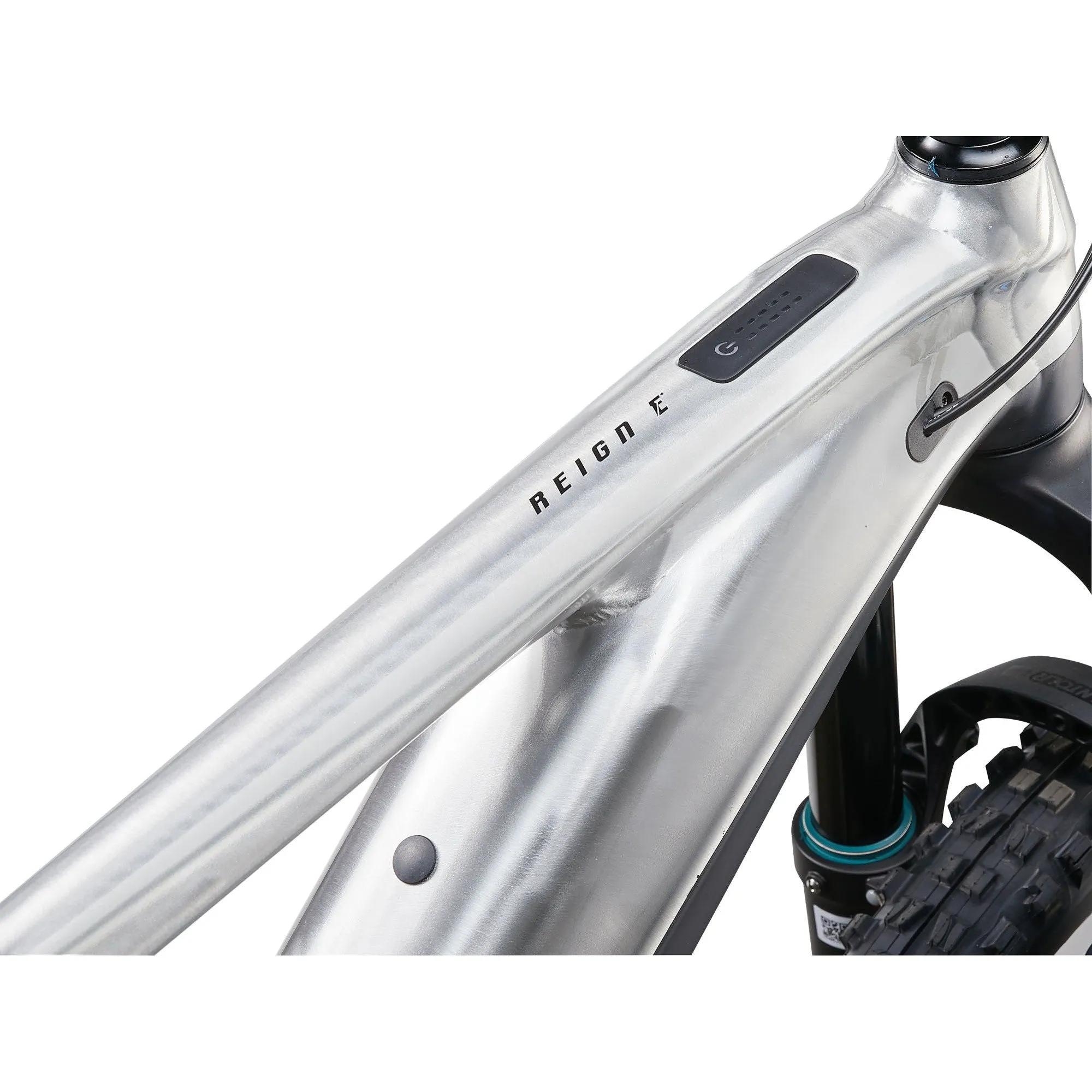

| Display | RideControl GO, frame integrated LED display ANT Wireless display compatible |
| Sizes | S, M, L, XL |
| Colors | Raw Aluminium |
| Frame | ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle |

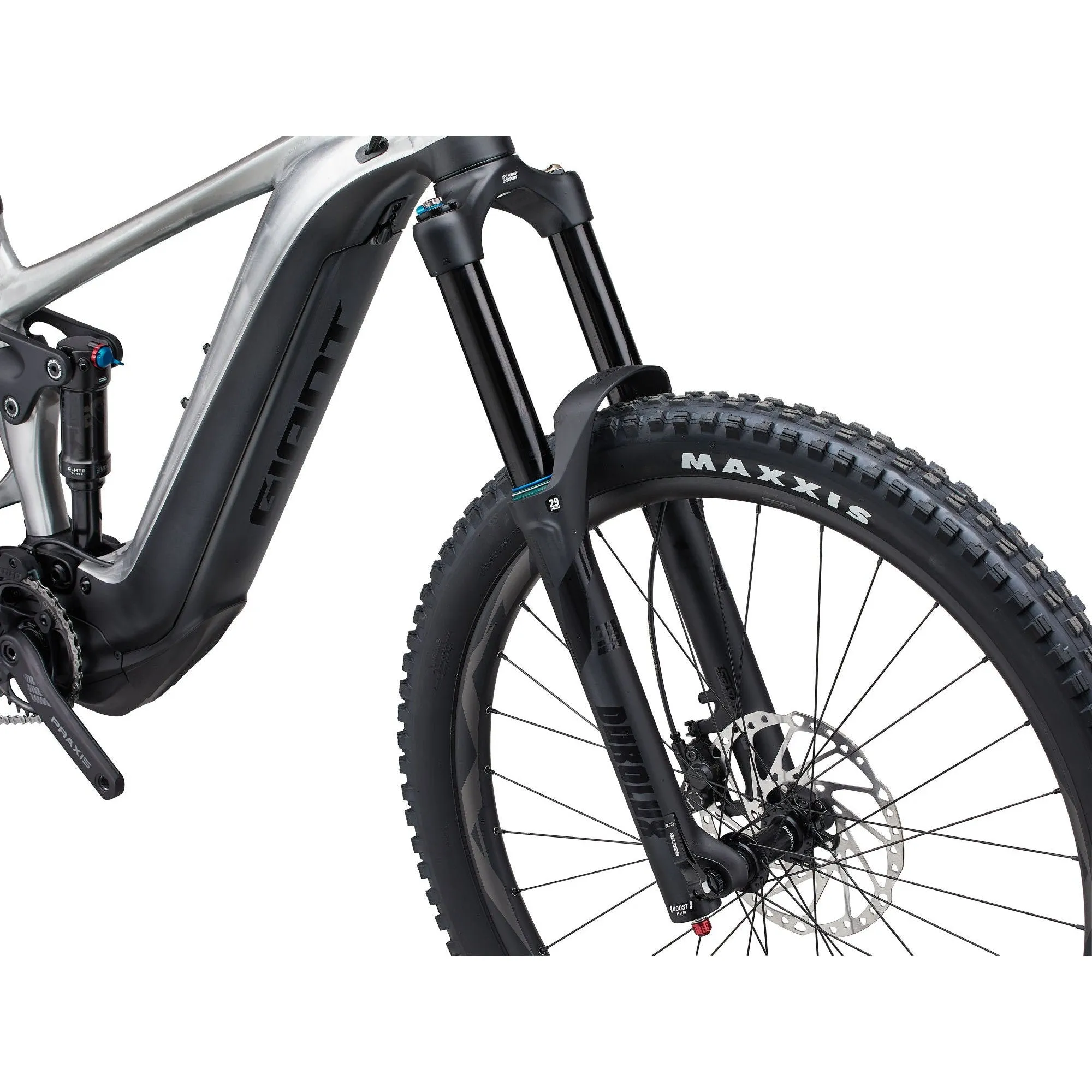

| Fork | SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 110x15mm |
| Shock | Fox Float DPS Performance, EVOL Large Volume sleeve, custom tuned |
| Handlebar | Giant Contact Trail, 35mm |
| Stem | Giant Contact SL 35mm S:40mm, M:50mm, L:50mm, XL:60mm |
| Seatpost | Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 17 |
| Saddle | Giant Romero Trail |
| Pedals | Platform |
| Shifters | Shimano CUES, SL-6000, 1x11 |
| Front Derailleur | MRP 1X HD2 custom co-moulded chain guide |
| Rear Derailleur | Shimano CUES, U6000, Shadow |
| Brakes | Shimano Deore BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm |
| Brake Levers | Shimano Deore BL-M4100, I-spec EV |
| Cassette | Shimano Cues CS-LG400-11, 10-50T, 11-speed |
| Chain | Shimano Cues CN-LG500 |
| Crankset | Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm |
| Bottom Bracket | N/A |
| Rims | Giant AM 29"[F] 27.5"[R], Tubeless ready |
| Hubs | Shimano MT410 Boost, Center-Lock |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimised |
| Tires | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO , 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
